Stand alone dehumidifiers are compact, self-contained units designed to remove excess moisture from the air in a specific area. Unlike built-in or ducted dehumidification systems, these devices can be easily moved and placed wherever humidity control is needed. They are an excellent choice for homeowners, renters, and office managers looking to improve the air quality and comfort of their indoor spaces.
| Quantity: | |
|---|---|

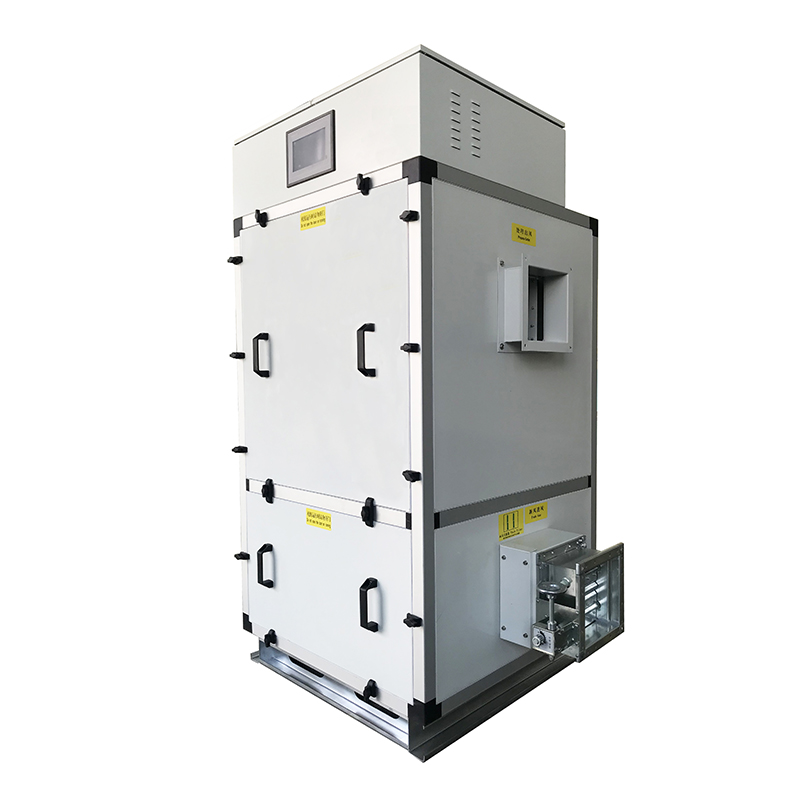

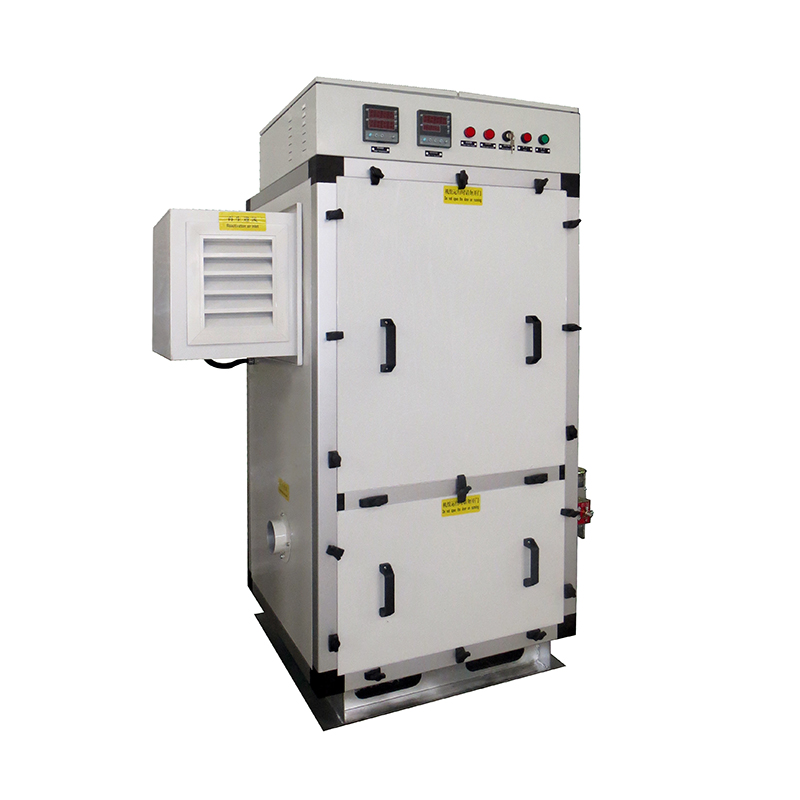

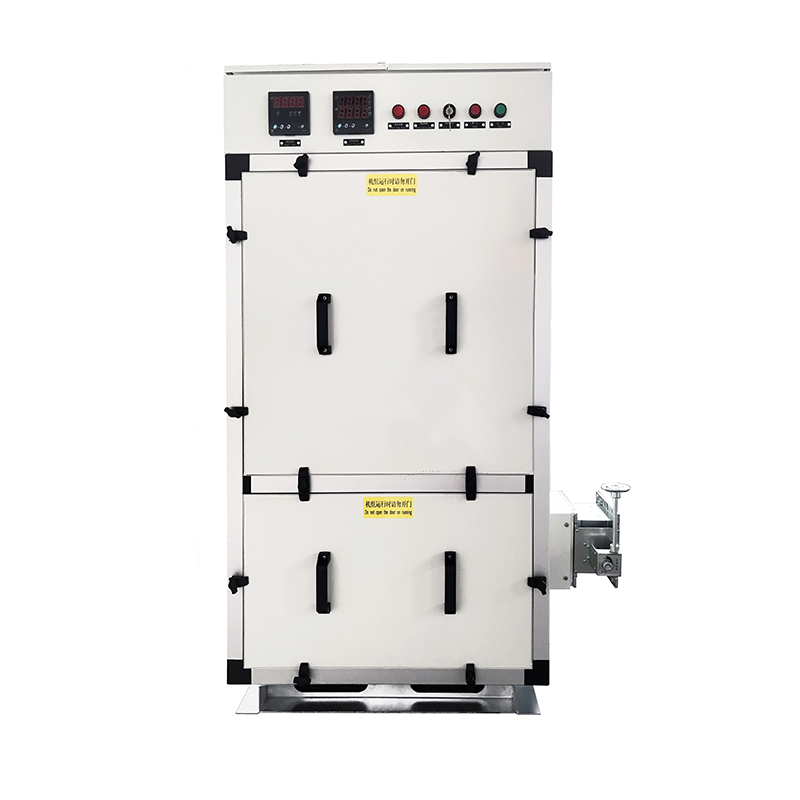

The Standalone Dehumidifier for Bridge Anticorrosion is a compact, industrial-grade humidity control solution engineered exclusively for bridge infrastructure, targeting the core pain point of steel structure corrosion caused by high humidity and salt spray in marine, coastal and outdoor environments. As a self-contained, portable unit, it outperforms fixed ducted dehumidification systems with flexible deployment, and is designed to maintain ambient relative humidity below 50%—the critical threshold for slowing steel corrosion. This bridge anticorrosion dehumidifier is tailored for enterprise users in the transportation and infrastructure construction sectors, providing a cost-effective, long-term corrosion prevention solution for bridge steel components such as main cables, steel box girders and bearing supports, without the need for complex on-site installation or reconstruction.
The primary dehumidification system draws in moist, salt-laden air via a high-pressure fan, passing it over a corrosion-resistant cooling coil. Air is cooled below its dew point, condensing water vapor into liquid that is collected in a sealed stainless steel water tank. The dried air is reheated to ambient temperature and blown back into the bridge’s steel structure cavity, forming a closed dry air circulation loop that displaces humid air. For low-temperature outdoor conditions (≤5℃) where refrigeration dehumidifiers underperform, the built-in molecular sieve desiccant module adsorbs residual moisture, ensuring stable dehumidification efficiency even in harsh cold environments.
Corrosion-resistant axial flow fan (marine-grade aluminum alloy casing) forms the air circulation core, paired with a titanium alloy cooling coil that offers anti-salt spray and anti-oxidation properties. A high-precision digital temperature and humidity sensor (±2% RH accuracy) ensures real-time and accurate humidity monitoring, while a sealed 304 stainless steel water tank prevents leakage and enables easy drainage. The IP65-rated control panel is dustproof and waterproof for outdoor use, and the PLC intelligent control module supports automatic humidity adjustment and fault alarm functions to ensure unattended operation.
For infrastructure operation and maintenance enterprises, this portable industrial dehumidifier for bridge infrastructure delivers tangible commercial value and operational benefits. It prolongs bridge service life by controlling humidity and isolating moisture from steel structures, reducing corrosion rates by over 80% and extending the service life of bridge steel components by 15-20 years, avoiding costly early steel structure replacement. It also lowers long-term maintenance costs by eliminating the need for frequent manual anti-corrosion coating and maintenance, cutting annual infrastructure maintenance costs by 30-40% for transportation departments and construction enterprises. Flexible & efficient deployment is achieved without fixed installation; the unit can be moved to key corrosion-prone bridge sections (main cables, box girders) as needed, with one unit covering 80-100 ㎡ of enclosed steel structure space. The PLC system enables intelligent unattended operation by automatically starting/stopping based on preset humidity values, reducing on-site manpower input and operational management costs. All components adopt anti-salt spray and anti-corrosion treatment, ensuring marine environment adaptability for long-term operation in coastal, offshore and high-humidity areas.
This humidity control for steel bridge corrosion prevention solution is ideal for enterprise users in transportation infrastructure operation, bridge construction and municipal engineering. Core application scenarios cover offshore/coastal steel structure cable-stayed bridges and suspension bridges (main cable and steel box girder anticorrosion), highway and railway steel structure bridges in high-humidity areas, municipal bridge bearing supports and steel connection section anticorrosion, temporary dehumidification for bridge maintenance and steel structure repair projects, and large-span steel structure viaducts in rainy and humid regions.
Parameter | Specification |
Dehumidification Capacity | 20 L/D (30℃, 80% RH) |
Humidity Control Range | 30-50% RH (adjustable) |
Applicable Temperature | -5℃ ~ 40℃ |
Airflow Rate | 300 m³/h |
Water Tank Capacity | 10 L (with automatic drainage port) |
Power Supply | 220V/50Hz (single-phase) |
Power Consumption | 350 W |
Protection Grade | IP65 |
Dimensions (L×W×H) | 600×450×750 mm |
Net Weight | 45 kg |
Operation Noise | ≤55 dB(A) |
The Standalone Dehumidifier for Bridge Anticorrosion complies with international industrial equipment standards and has obtained a full set of certifications for enterprise users, including ISO 9001 Quality Management System Certification, CE Certification (EU industrial equipment safety standard), IP65 Dustproof and Waterproof Certification, Marine Grade Anti-Corrosion Material Testing Certification, and National Metrology Institute Temperature and Humidity Accuracy Calibration Certificate. Quality assurance includes a 2-year overall warranty for the whole machine and a 5-year warranty for core components (compressor, fan); free on-site debugging and technical training are provided for enterprise users, along with 24/7 after-sales technical support and on-site maintenance service in key regions.
Yes. All components are treated with marine-grade anti-salt spray and anti-corrosion, and the control panel has an IP65 protection grade, which can adapt to the high-salt, high-humidity outdoor environment of offshore bridges for 24/7 continuous operation.
For a medium-span steel box girder bridge (300-500 m), it is recommended to deploy units in key sections (cable towers, main cables, box girder joints), with one unit covering 80-100 ㎡ of enclosed steel structure space and 6-8 units sufficient for full coverage.
Yes. It is equipped with a PLC intelligent control module that supports 4G/5G remote monitoring, real-time humidity data viewing and remote parameter adjustment, which is convenient for enterprise users to carry out centralized management of multiple bridge dehumidification equipment.
Routine maintenance only requires monthly cleaning of the air filter and regular drainage of the water tank; the core components are maintenance-free for 2 years, and the after-sales team provides annual on-site inspection and maintenance for enterprise users for free.
