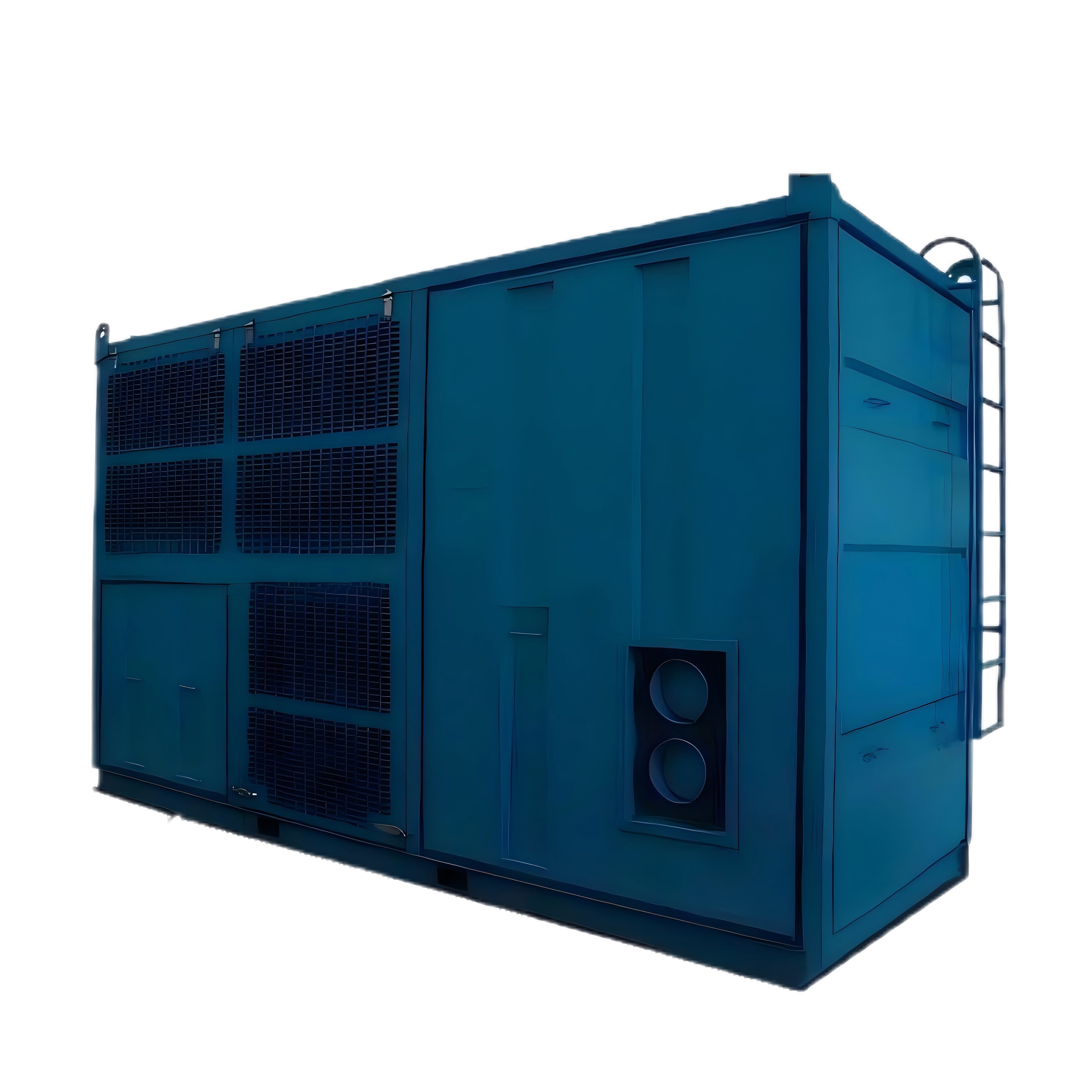

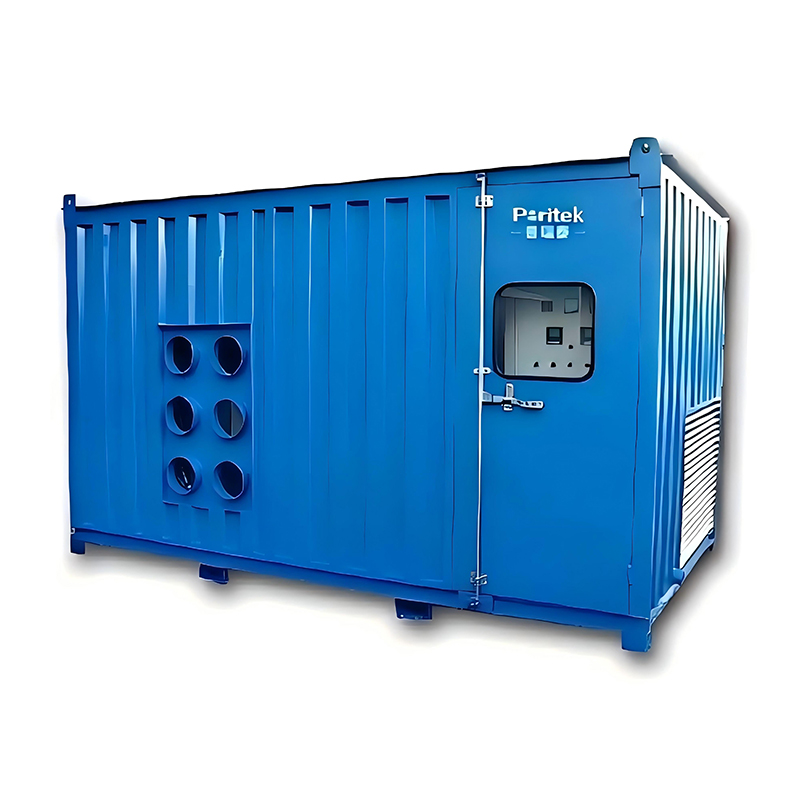

ZLLY series mobile four seasons dehumidifier adopts the combination of freezing and honeycomb rotor dehumidification method. It is suitable for special coating operations in temporary locations in four seasons. In summer, freeze dehumidification is the main, and rotor dehumidification is the supplement, mixed dehumidification in transition season, dehumidification by rotor in winter or electric heating adjustment.
The refrigeration system of this dehumidifier adopts air-cooled condensing refrigeration unit. The processing air is first dehumidified by cooling coil, and then further dehumidified by a rotor according to the working conditions. Desiccant rotor ,the key part of the unit is made through the special process to make the adsorbing material silica gel build-in the isotopic carries of inorganic fiber paper, and processed by corrugated molding, this structure has a considerable moisture absorption area, which greatly improves the dehumidifying capacity.
This dehumidifier can reach the technical index of temperature 20-32 ℃ and relative humidity ≤ 45% under the air inlet condition of temperature - 5-40 ℃ and relative humidity 50-99%. The condenser of the unit adopts air-cooled steel tube aluminum fins, and the evaporator adopts direct evaporation type steel tube aluminum sheet. The unit provides four working states for the user to choose, which are full refrigeration, refrigeration and rotor mixing, full rotor and rotor mixed with heating. The dehumidifier has 4 ~ 8 air outlets, which are connected with air supply pipes respectively.
Main Parameters / Model | ZLLY-6000 | ZLLY-10000 | ZLLY-12000 | ZLLY-17000 | |
Dehumidify airflow m3/h | 6000 | 10000 | 12000 | 17000 | |
Output excess pressure Pa | ≥1000 | ≥1000 | ≥1500 | ≥1500 | |
Installed Power kW | 129 kW | 198kW | 281 | 422 | |
Dimensions of air outlet mm | ¢350×2 | ¢300×4 | 500×500 | 600×600 | |
Compressor | Semi-enclosed screw compressor | ||||
Condenser cooling pattern | air-cooled | ||||
Refrigerant | R22 | ||||
Temperature control mode | High sensitive temperature probe + PLC automatic control + touch panel | ||||
Inlet Air Parameters | -5~40℃, 50~95%RH | ||||
Outlet Air Parameters | Winter: ≥25±3℃,RH∠45%; Spring and Autumn: ≤25±3℃,RH∠45%; Summer: 25±3℃,RH∠45% | ||||
Cooling unloading | Level 4(25%-50%-75%-100%) | ||||
Power supply | 3Phase,380V±10% 50Hz | ||||
Master control program | PLC logical control | ||||
Overall Dimensions | Length mm | 4000 | 4500 | 4850 | 5800 |
Width mm | 1950 | 2100 | 2200 | 2300 | |
Height mm | 2300 | 2600 | 2700 | 2750 | |
Weight kg | ≤3900 | ≤4800 | ≤6000 | ≤8000 |
Note: Larger dehumidifiers can be customized according to user needs.

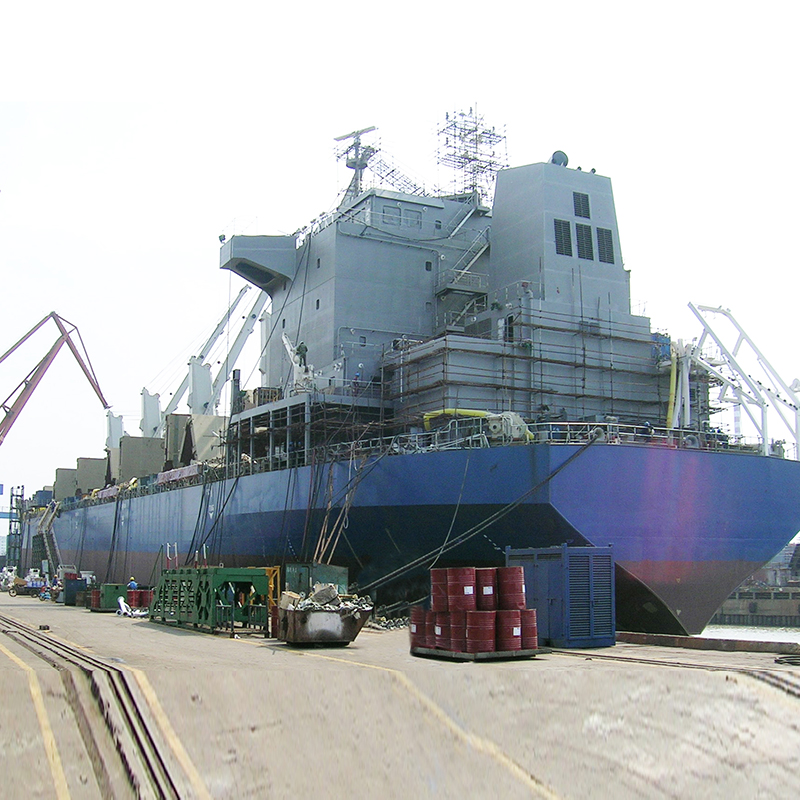

The four seasons mobile dehumidifier can effectively control humidity, improve painting quality and efficiency, protect equipment and tools, and improve working environment in ship painting, and has important application value.
Q: What’s MOQ?
A: one set.
Q: What’s delivery?
A: Within 35 days after receipt of down payment.
Q: What’s package?
A: Wooden cases,a kind of standard package for export.We could also make special package according to your demand.
Q: What’s payment terms?
A: TT or L/C
Q: Customized service
A: We offer OEM/ODM service.
