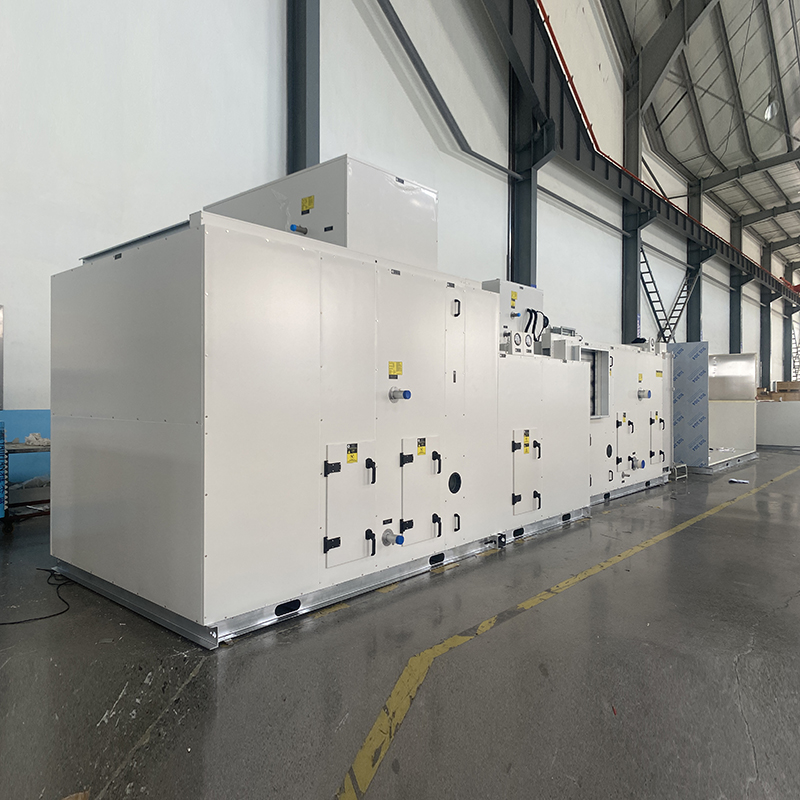

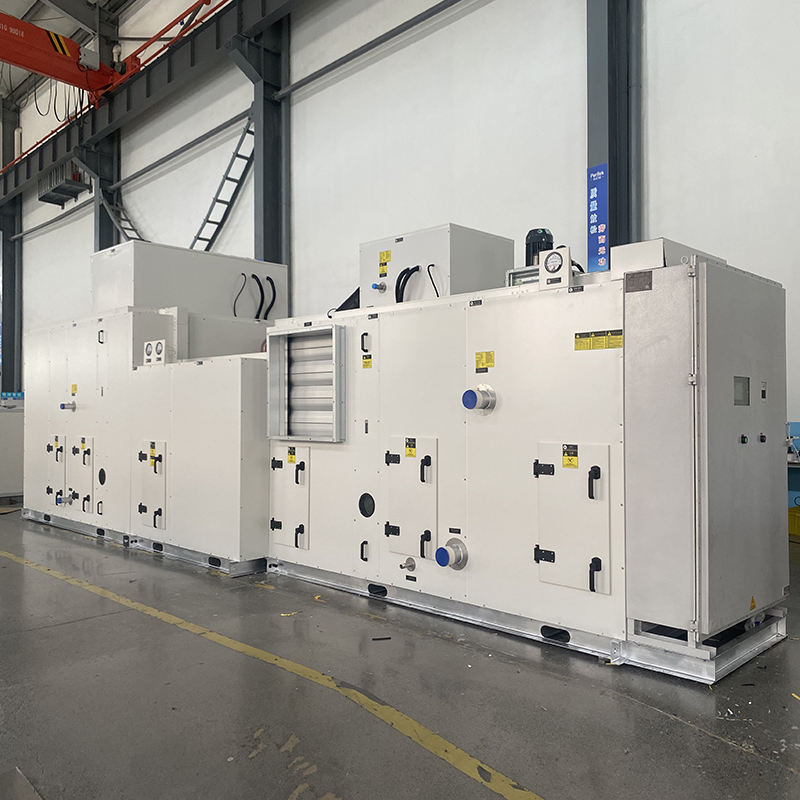

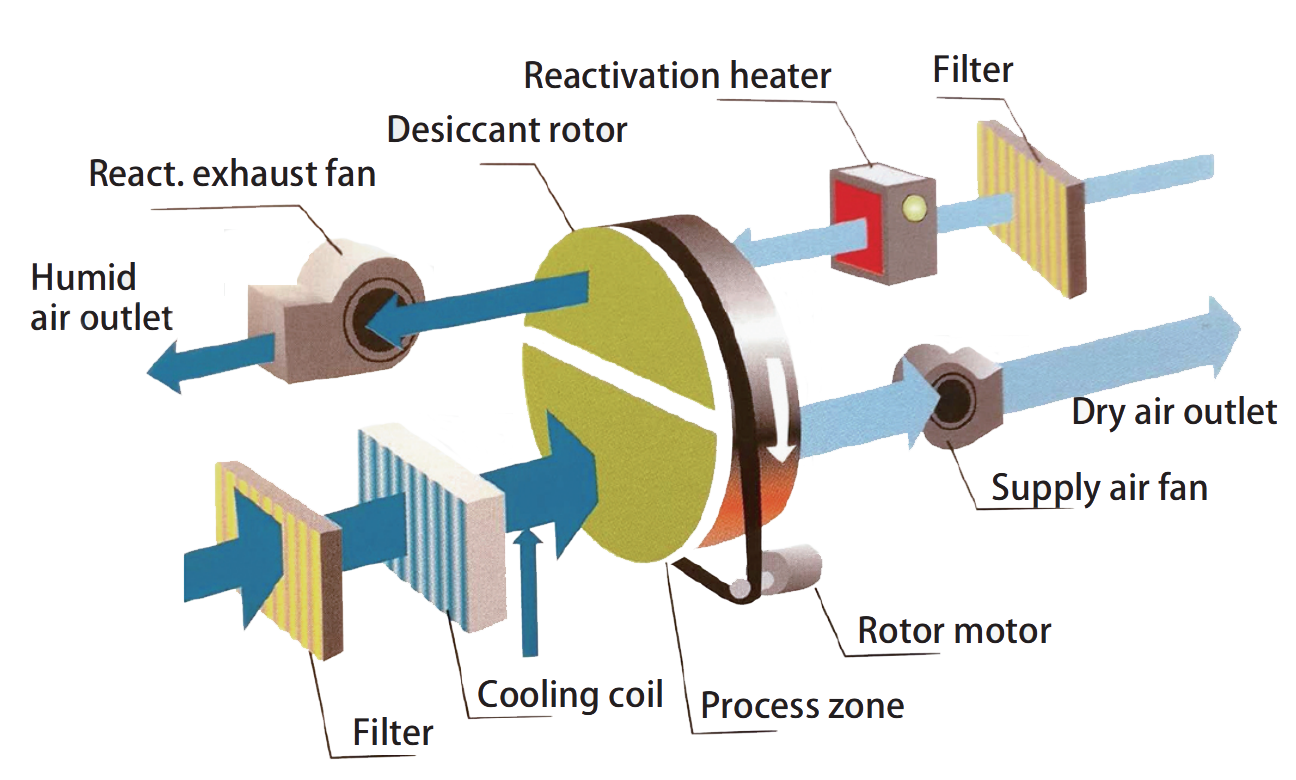

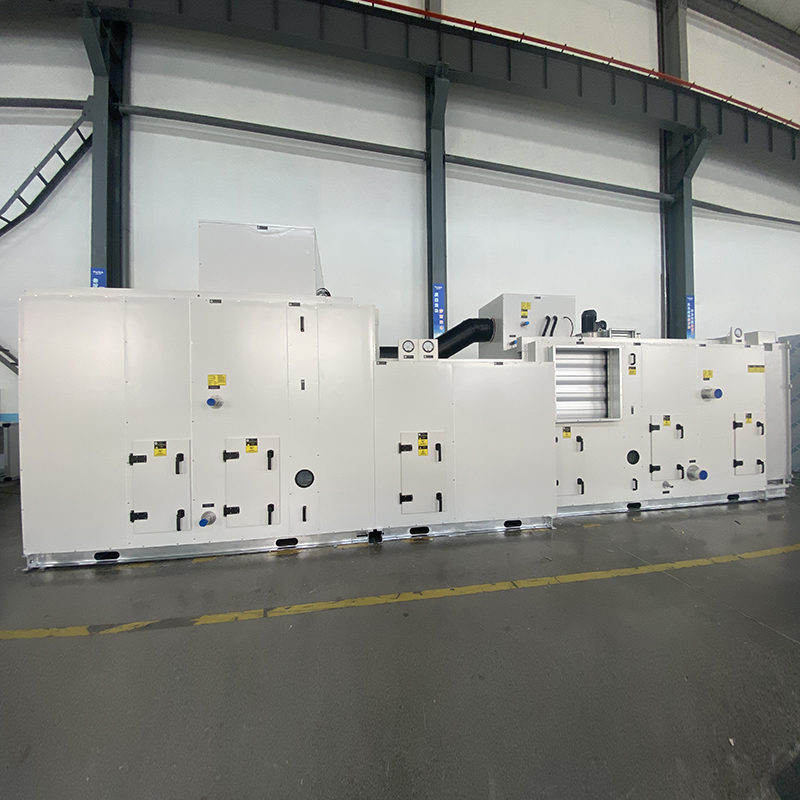

ZDW series low-temperature reactivation dehumidifier uses the waste heat of steam condensate as the reactivation heat source. The reactivation temperature is between 45 ~ 75 ℃, which is much lower than the reactivation temperature of ordinary desiccant rotor dehumidifier. Under such low-temperature reactivation conditions, it can still make the humidity in the place of use is between 20 and 60%, meeting the requirements of environmental control and production processes. The use of waste heat significantly reduces production costs.
Main Parameters / Model | ZDW-3000 | ZDW-5000 | ZDW-7500 | ZDW-10000 | ZDW-15000 | |
Process Air | Airflow, m³/h | 3000 | 5000 | 7500 | 10000 | 15000 |
Fan Power, kW | 3.0 | 4.0 | 7.5 | 11.0 | 15.0 | |
Reactivation Air | Airflow, m³/h | 3000 | 5000 | 7500 | 10000 | 15000 |
Fan Power, kW | 1.5 | 2.2 | 4.0 | 5.5 | 7.5 | |
Reactivation Mode | Electrical Heating Power, kW | 35 | 58 | 88 | 116 | 175 |
Steam Consumption, kg/h | 2.2 | 3.6 | 5.5 | 6.7 | 11 | |
Note: It can be professionally designed and produced according to the actual situation where waste heat can be provided.
Warehouse, Library and Archives;
Pharmaceutical Industry, for example, soft gelatin capsule, fluidized bed, tablet press, coating machine, tumble dryer, tray dryer and so on.
Electronics Industry, Lithium Battery,such as electronic components, astronavigation component, lithium battery etc which needs strict control of moisture;
Chemical Fiber Industry;
Food Processing Industry, used in dehydrated vegetables, chocolate, candy, chewing gum manufacturing, cube sugar store,flour processing, fermentation, drying and other processes.
Space and Aviation
Glass Lamination
Ship Coating
Bridge Anticorrosion
Rubber Tire
Nuclear power plants
Printing and so on.
Q: What’s MOQ?
A: one set.
Q: What’s delivery?
A: Within 35 days after receipt of down payment.
Q: What’s package?
A: Wooden cases,a kind of standard package for export.We could also make special package according to your demand.
Q: What’s payment terms?
A: TT or L/C
Q: Customized service
A: We offer OEM/ODM service.
