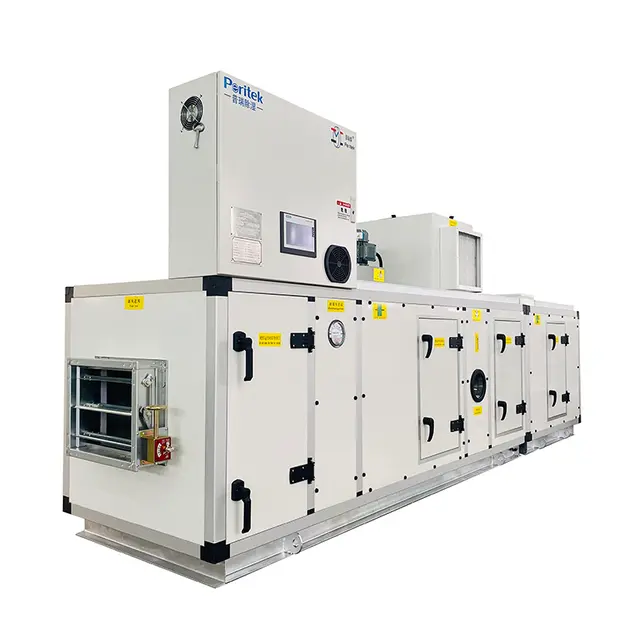

Maintaining precise humidity levels in commercial spaces can be challenging, especially in cold storage, archives, or production rooms where moisture control is critical. Incorrect installation of a commercial desiccant dehumidifier often leads to uneven drying, energy inefficiency, or recurring condensation issues. Understanding room conditions, airflow paths, and equipment placement is essential to ensure reliable performance. Clear insights into these factors help facility managers and technicians prevent common pitfalls, optimize system efficiency, and protect sensitive materials while achieving consistent humidity control.
Before installation, clarify whether the objective is maintaining relative humidity, preventing frost, avoiding mold growth, or protecting sensitive materials. Cold storage facilities, for example, require frost mitigation and low dew point control to prevent ice accumulation on goods and floors. Archives and museums prioritize steady RH levels to prevent paper deterioration and artifact damage. Production or pharmaceutical rooms may demand low dew point air to ensure product consistency and process reliability.
Understanding these requirements defines the system capacity, rotor selection, and sensor placement. A unit sized without considering target dew point may underperform or operate continuously, increasing energy use and reducing component life.
Evaluate structural conditions such as ceiling height, floor support, and door access. Room volume affects air changes per hour and the required airflow capacity of the dehumidifier. Inspect the building envelope for unsealed penetrations, excessive outside air infiltration, or gaps around doors and windows. Even the most robust commercial desiccant dehumidifier cannot overcome uncontrolled wet air intrusion.
Confirm electrical supply meets the unit’s voltage and amperage requirements, including appropriate disconnects. Identify suitable condensate or moisture discharge paths to prevent water damage or operational hazards. Ensure technicians have unobstructed access to filters, rotor inspection points, heating elements, and controls. Neglecting maintenance access may result in prolonged downtime, reduced performance, or costly retrofits.
By addressing target conditions, structural readiness, and essential utilities before the unit arrives, installations avoid common pitfalls such as undersized equipment, airflow limitations, or sensor misplacement. These measures lay the foundation for accurate commissioning and long-term operational efficiency.
The performance of a commercial desiccant dehumidifier hinges on maintaining distinct air streams. Process air carries moisture from the controlled environment through the rotor, while reactivation air removes absorbed moisture to prepare the desiccant for continuous operation. Mixing these streams compromises drying efficiency, increases energy consumption, and may cause unstable room RH readings.
Proper wet exhaust routing ensures that expelled moisture does not re-enter the controlled space. Incorrect placement can lead to condensation on ducts or walls and may introduce heat or humidity into sensitive areas. Exhaust air should exit externally with minimal obstruction and sufficient distance from intakes or occupied spaces.
Duct length, bends, and sizing directly influence airflow and system performance. Excessive bends or undersized ducts increase pressure drop, reducing the dehumidifier’s effective capacity. Filter placement and selection protect the rotor from dust and particulate contamination while maintaining airflow. Rigorous attention to duct efficiency minimizes energy consumption and prevents shortfalls in target RH.
Visual aids, such as an Installation Air Path Checklist, can support planners by highlighting critical control points: process air inlets, dry air outlets, reactivation air sources, wet exhaust paths, and service access. This proactive approach prevents common installation errors, ensuring that the system functions as intended and delivers reliable moisture removal.

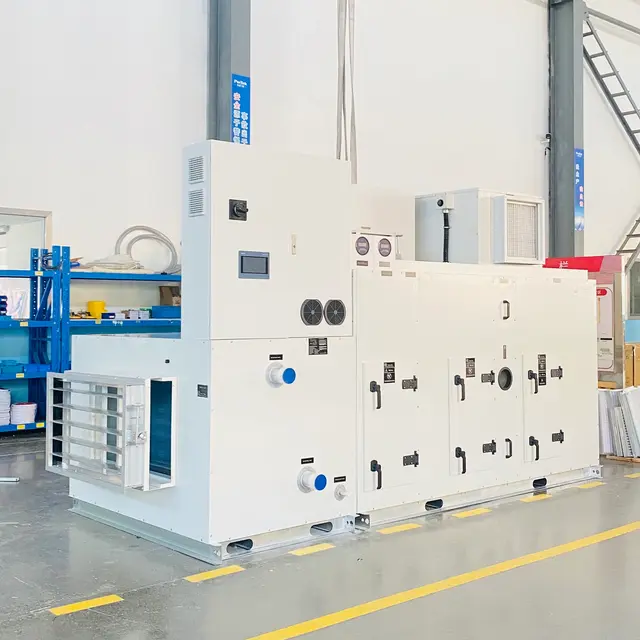

Selecting the right location for a commercial desiccant dehumidifier is not only about finding enough floor space. The unit must be placed where air can move freely, service panels remain accessible, and duct connections can be routed without unnecessary resistance. A position close to the target area may reduce duct length, but it can become a poor choice if it blocks maintenance access, creates sharp duct turns, or places the unit in a congested work zone.
Before installation, the team should confirm several practical conditions:
● The floor, platform, wall bracket, or suspension structure can support the operating weight of the unit.
● Service panels can be opened fully without moving other equipment.
● Filters, belts, heaters, wiring, and controls can be inspected safely.
● Duct connections can be routed without sharp turns immediately at the unit.
● The surrounding area is not exposed to heavy dust, chemical fumes, water spray, or excessive heat.
The surrounding environment also matters. If the system is placed in a mechanical room, the room must still provide enough air for reactivation and enough clearance for technicians. Vibration isolation pads, flexible connectors where appropriate, and level mounting help reduce mechanical stress and noise transmission. Poor placement often creates problems that look like equipment failure, even when the machine itself is working correctly.

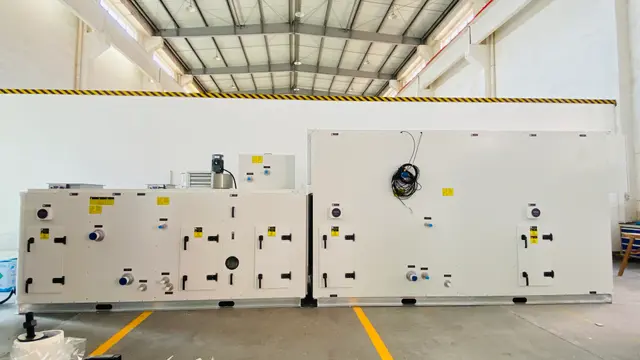

Once the location is confirmed, each connection should be checked against the airflow design. Process air, dry air, reactivation air, and wet exhaust must follow the intended direction. Reversed or poorly sealed duct connections can reduce drying capacity and may allow humid air to return to the controlled space. Duct joints should be sealed properly, and exhaust ducts should be routed so that moisture cannot recirculate into intake openings.
Key connection points should be verified before startup:
● Process air inlet
● Dry air outlet
● Reactivation air inlet
● Wet exhaust outlet
● Electrical supply and disconnect
● Control wiring
● Humidity sensor or humidistat location
● Alarm, run status, or BMS communication points
Electrical wiring and control connections should follow the manufacturer’s instructions and local electrical codes. A suitable disconnect should be available for safe servicing, and wiring should be protected from heat, moisture, and moving parts. Humidity sensors or humidistats should be positioned where they represent actual room conditions, not directly in front of the dry air outlet, near doors, or in stagnant corners. Bad sensor placement can cause short cycling, delayed response, or misleading RH readings.
Many installation problems come from small shortcuts that seem harmless during setup. Flexible duct may be convenient, but if it collapses, sags, or creates excessive resistance in a critical airflow path, the unit may never deliver its rated performance. Blocking service panels to save space can turn routine filter replacement into a difficult task and may lead to skipped maintenance.
Common shortcuts to avoid include:
● Using undersized ducts to fit limited space
● Placing sensors too close to the dry air supply
● Routing wet exhaust near an intake, loading door, or open louver
● Leaving duct joints unsealed
● Blocking service panels with walls, shelves, or other equipment
● Ignoring duct insulation in cold areas
● Failing to label airflow directions and control wiring
These errors are not always visible immediately. The system may start normally but later show unstable humidity control, high energy use, condensation, or frequent alarms. A disciplined installation process prevents these issues by treating airflow, electrical safety, controls, and future maintenance as connected parts of the same system rather than separate tasks.
After installation, the system should not be judged only by whether it starts and runs. A commercial desiccant dehumidifier must be checked against real operating conditions, including airflow, room relative humidity, supply air temperature, and leaving air dew point. These readings show whether the rotor is removing moisture as expected and whether the dry air is reaching the controlled area instead of being lost through poor distribution.
Measurements should be taken at more than one location, especially in large rooms, cold storage areas, or production spaces with doors, racks, or machinery that affect air movement. A single reading near the unit can be misleading. Calibrated instruments should be used to confirm room RH, process air condition, reactivation airflow, and exhaust performance. If airflow is lower than expected, the cause may be duct resistance, blocked filters, poor balancing, or incorrect fan settings.
Control testing confirms whether the system responds correctly when humidity conditions change. Setpoints for RH or dew point should be reviewed against the actual site requirement, not simply left at factory defaults. Fans, heaters, alarms, safety interlocks, and any building management system connection should be tested during startup so problems can be corrected before the space depends on the system.
The installer should also observe how the system behaves under load. For example, door openings, production activity, or incoming humid air can change the moisture load quickly. If the control sequence is too aggressive, the unit may cycle unnecessarily. If it responds too slowly, humidity may drift above the target range. A stable installation should maintain control without constant alarms, excessive heater runtime, or large RH swings.
Baseline data gives facility teams a reference point for future troubleshooting. Important values include airflow, room RH, leaving air dew point, supply air temperature, filter pressure drop, heater operation, and rotor rotation. These readings should be recorded after the system has stabilized, not only during the first few minutes of startup.
This record helps separate equipment faults from changing site conditions. If humidity rises months later, the team can compare current readings with the original baseline. A higher filter pressure drop may point to clogged filters. A changed dew point may suggest rotor contamination, heater issues, or airflow imbalance. Without baseline data, troubleshooting often becomes guesswork.
If the room does not reach the target humidity, the first step is to check whether the system is actually moving enough air through the right paths. Restricted ducts, blocked filters, reversed airflow, or poor dry air distribution can prevent the space from drying evenly. Sensor placement should also be reviewed because a humidistat installed near a dry air outlet may shut the unit down too early, while one near a door may keep it running longer than necessary.
Outside air infiltration is another common cause. Loading docks, frequent door openings, gaps around panels, and unsealed penetrations can introduce more moisture than the system was designed to handle. In this case, replacing the unit with a larger model may not solve the problem unless the building leakage is also corrected.
High energy use usually means the system is working harder than it should. One possible cause is a humidity or dew point setpoint that is lower than the application really needs. Another is excessive duct resistance, which reduces airflow and forces fans or heaters to operate longer. Reactivation heat should also be reviewed because unstable or excessive heater operation can increase operating cost.
Control sequencing can create hidden energy waste. If fans, heaters, and dampers are not coordinated correctly, the unit may continue operating at full demand even after the space is already within range. Reviewing runtime patterns, alarm history, and control response can help identify whether the issue is mechanical, electrical, or related to the building load.
Condensation, frost, or returning moisture usually indicates that dry air is not reaching the problem area or humid air is entering faster than expected. In cold spaces, uninsulated ducts can create surface condensation even when the dehumidifier is operating correctly. Wet exhaust placed too close to an intake can also cause moisture to recirculate, making the system appear ineffective.
Room pressure should be checked when moisture problems return after installation. Negative pressure may pull humid outdoor air into the controlled area through doors, cracks, or wall openings. Poor air distribution can leave corners, shelves, ceilings, or loading zones wetter than the rest of the room. Correcting these causes often improves performance more effectively than changing setpoints or increasing runtime.
Installing a commercial desiccant dehumidifier successfully depends on more than connecting equipment. Room conditions, process air, reactivation air, wet exhaust routing, sensor placement, and commissioning data all affect whether the system can maintain stable humidity with reasonable energy use.
