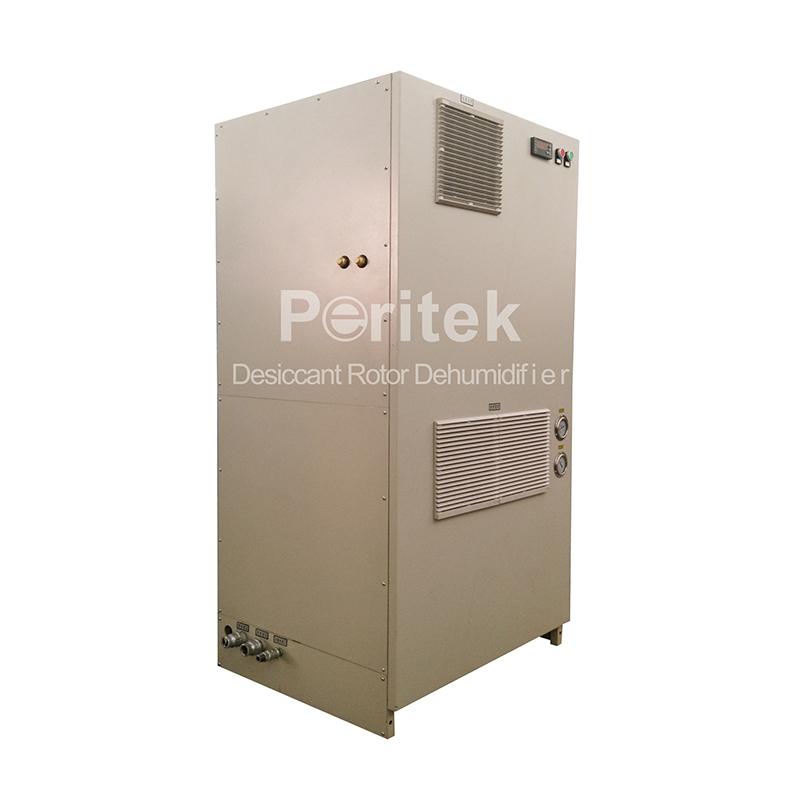

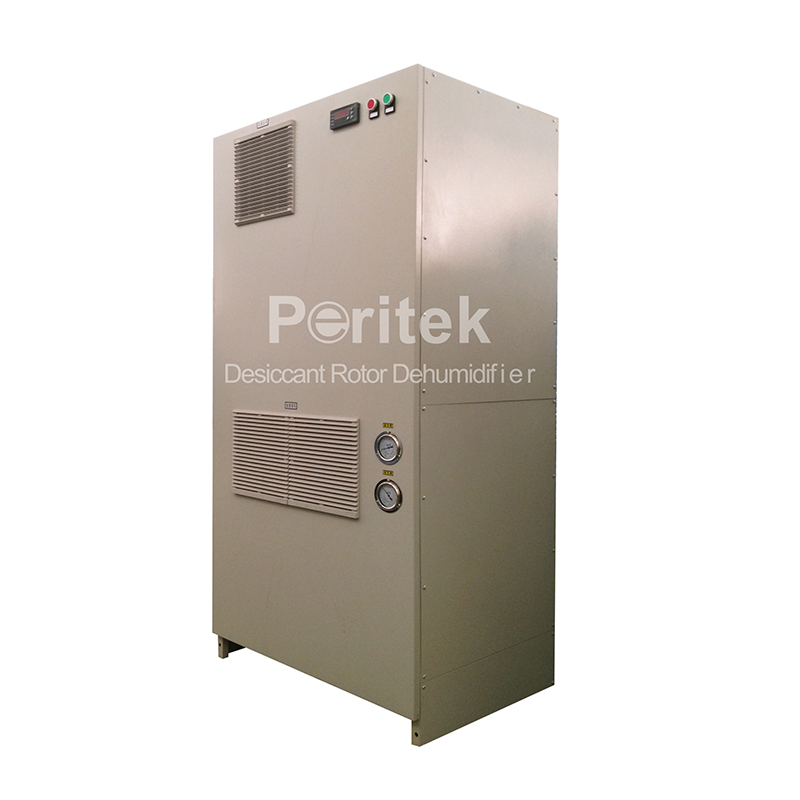

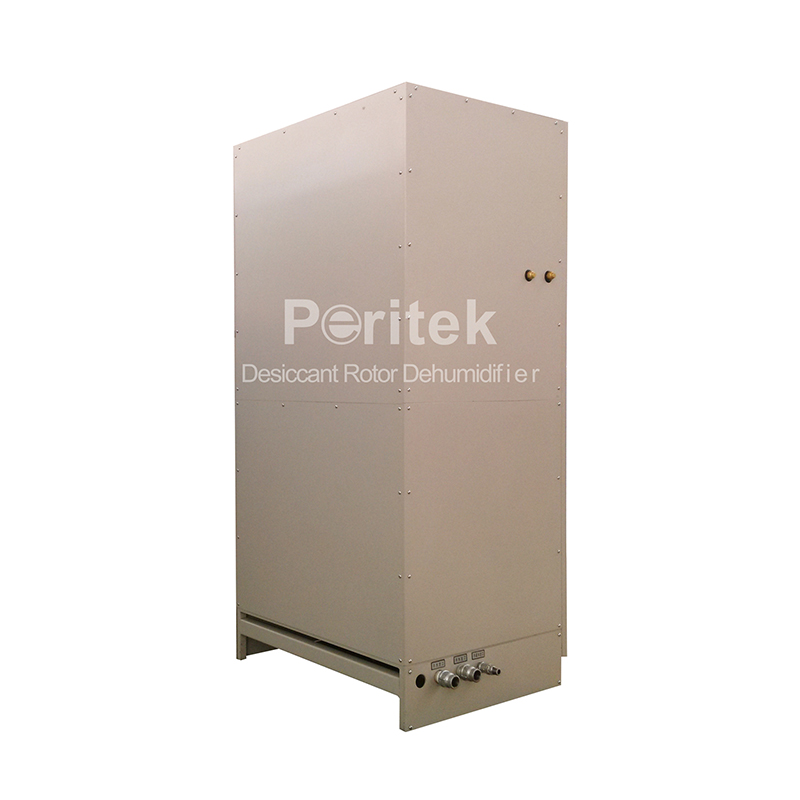

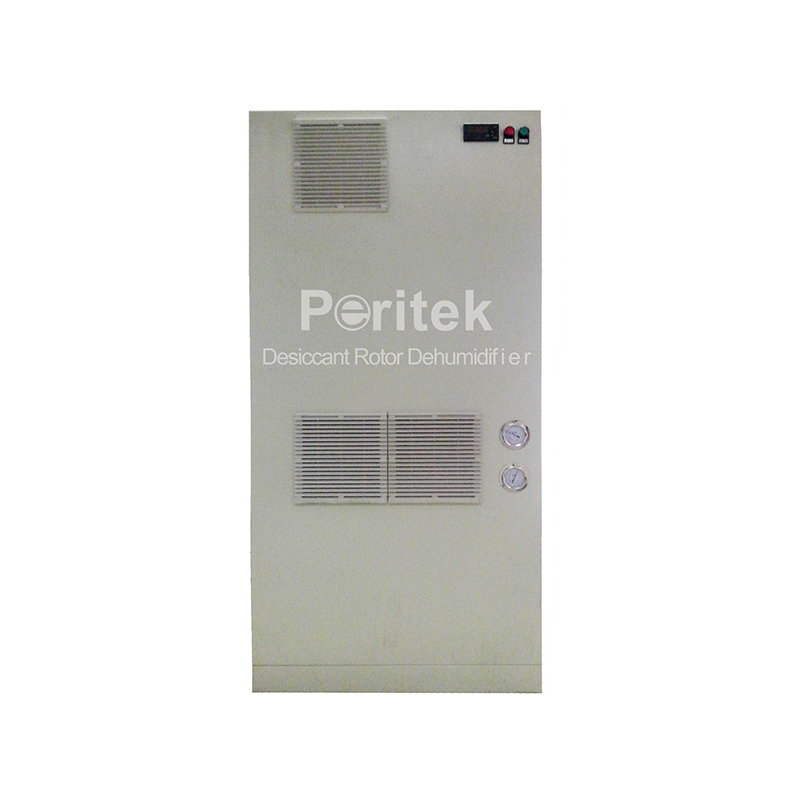

1. Innovative Design: It completely breaks away from the traditional process and structural model of rotary dehumidifiers, featuring advanced technology and excellent dehumidification performance. Each modular dehumidifier can be used in a drying room with a height of 2.6 meters and an area of approximately 25 square meters, controlling temperature and humidity parameters within 25°C and 20%. This meets the temperature and humidity requirements of most production processes.
2. Flexible Combination: When the area of the drying room increases, multiple units can be used together to quickly expand dehumidification capacity. When the area remains unchanged, adding more dehumidifiers can further reduce the drying room parameters, achieving levels as low as 25°C and below 10%. Therefore, it is widely used in various environments with low humidity process requirements.
3. Low Energy Consumption: The modular dehumidifier has a rated power of 6.5 kW, with an actual operating power of 4 kW after stable operation, which is half that of similar dehumidifier units.
4. Compact Structure with Small Footprint: The modular dehumidifier is designed with advanced processes and technology, occupying only 0.5 square meters per unit. It does not affect the original layout of the workshop and is easy to implement.
5. No Ductwork Required in Drying Rooms: This saves a significant amount of engineering and supporting work.
6. Efficient and Safe Regeneration: The rotary wheel regeneration uses a new PTC heater, which is highly efficient, safe, and has a long service life.
Model | PRI-1 |
Supply airflow, CMH | 1000 |
Supply air temperature, ℃ | 18~26 |
Relative humidity, % | 15~24 |
Regeneration temperature,℃ | 100±10 |
Process fan power, kW | 0.38 |
Regeneration fan power, kW | 0.16 |
Refrigeration unit power, kW | 3.57 |
Rotor motor power, kW | 0.025 |
Regeneration PTC power, kW | 2 |
Condensate drain pump power, kW | 0.045 |
Cooling water circulating pump, kW | 0.37 |
Cooling tower fan power, kW | 0.12 |
Installed power, kW | 6.67 |
Overall dimensions, mm | 803×667×1650 |
Approx. Weight, kg | 200 |

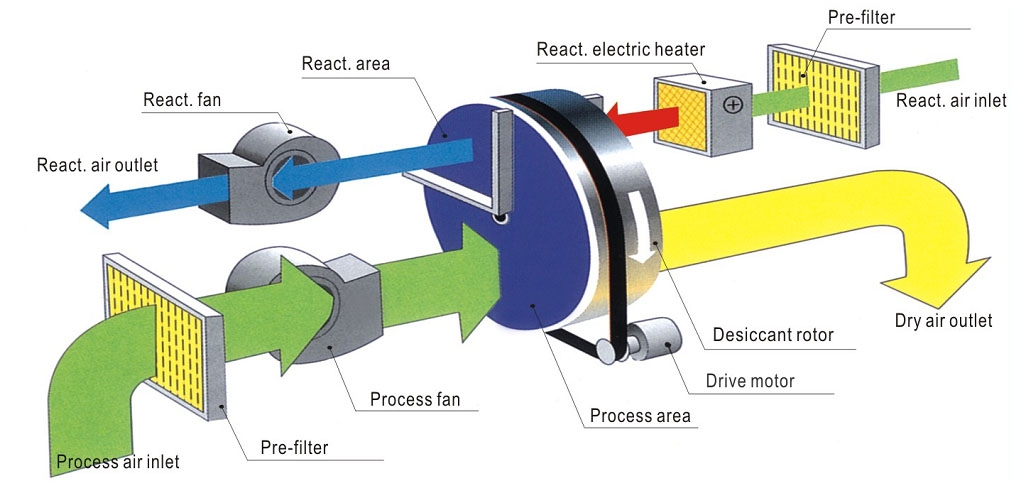

The core component of rotary desiccant dehumidifier is the 8-16 hour spin in turn densely cellular conde desiccant wheel. The desiccant wheel on both sides by high-performance silicon fluorine rubber seals along the entire surface of the radial will be divided into 270 ° of the treatment area and 90 ° of the regeneration zone, when the moist air comes into the processing area, the air moisture in the desiccant wheel was adsorbed into dry air, dry air meet the need of dry place or gas production process.
