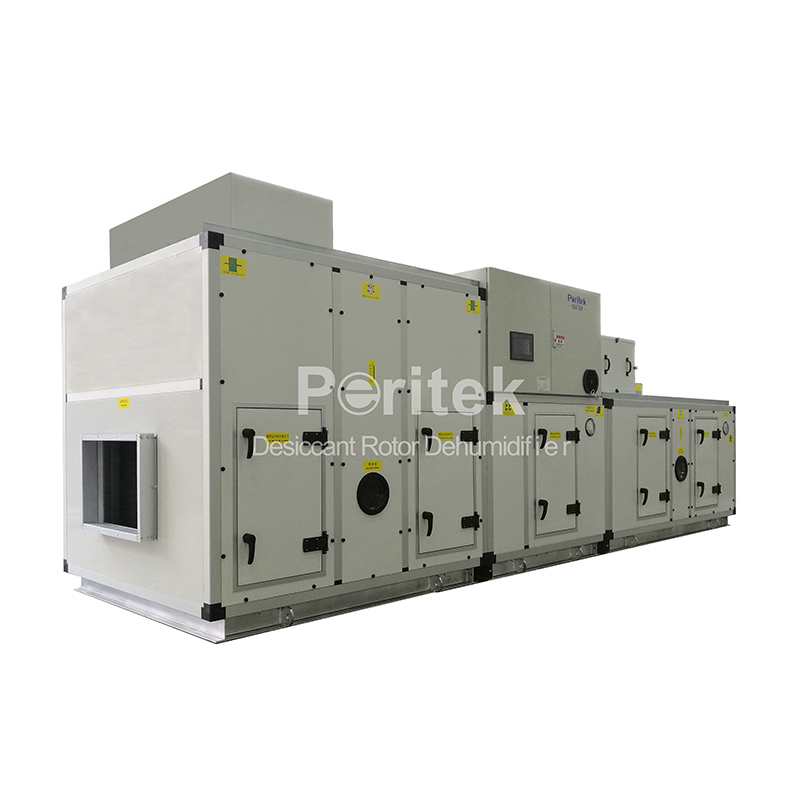

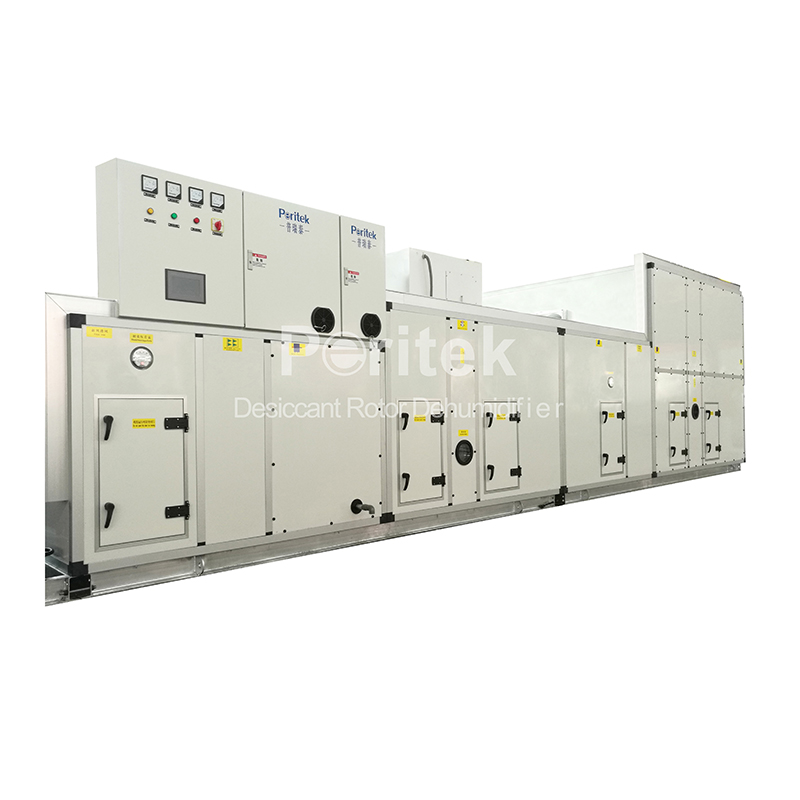

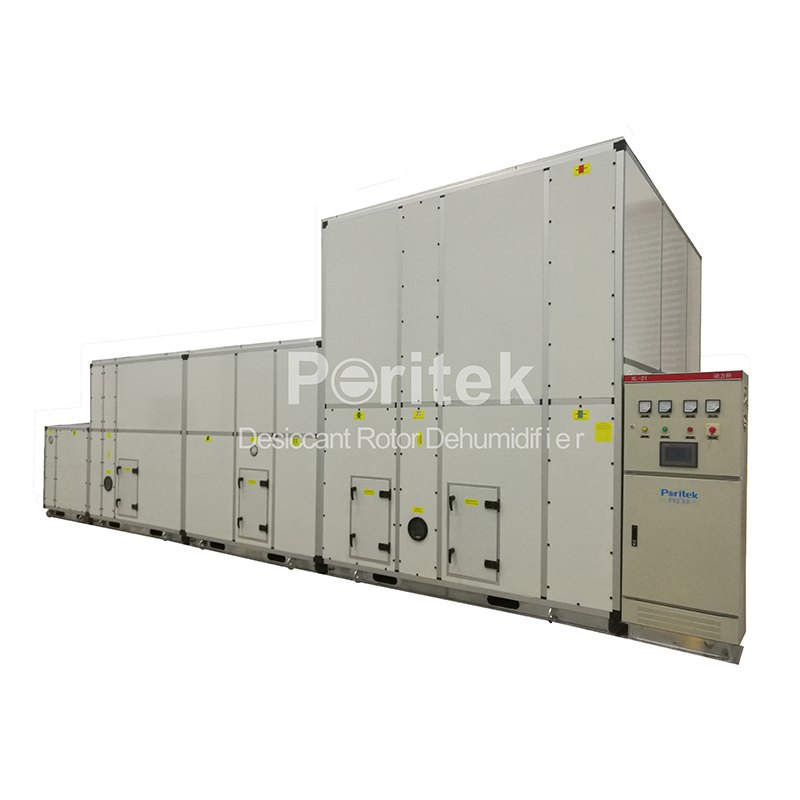

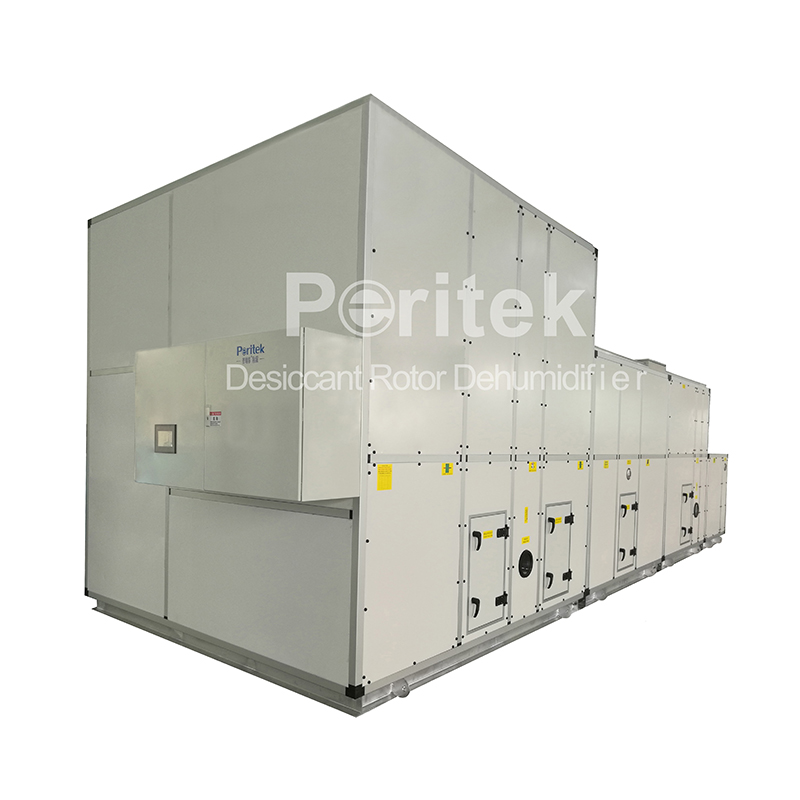

Peritek’s lithium battery desiccant rotor dehumidifier integrates advanced refrigeration and desiccant adsorption technologies to achieve ultra-low humidity levels critical for battery production. It protects sensitive electrolytes and electrode materials from moisture damage, reducing production rejects and enhancing long-term product performance for battery manufacturers.
| Quantity: | |
|---|---|
Lithium battery production requires strict ambient moisture control, as even trace amounts of water can react with lithium materials, degrade electrolyte performance, and increase safety hazard risks. The lithium battery desiccant rotor dehumidifier is a specialized low dew point device engineered for these demanding industrial environments. Unlike standard dehumidifiers used for general commercial purposes, this system combines refrigeration and desiccant technologies to maintain consistent low humidity levels that meet the stringent requirements of lithium battery manufacturing processes. This equipment supports stable production operations and helps commercial users manage moisture-related risks effectively.
The system first processes incoming moist air through multiple stages of refrigeration coils. As air contacts these cold surfaces, its temperature drops below the dew point, causing water vapor to condense into liquid. The condensed water is collected and drained from the system, removing the majority of moisture from the air. Multi-stage refrigeration enhances moisture removal efficiency and prepares the air for further desiccant treatment.
After refrigeration, the pre-dried air passes through a rotating desiccant rotor coated with silica gel. This material adsorbs remaining water vapor molecules from the air stream. A separate regeneration section heats a portion of the dried air to 120-180°C, which passes through the saturated part of the rotor to release adsorbed moisture. The moist regeneration air is then exhausted outside, allowing the desiccant to be reused continuously for dehumidification.
Parameter | Value Range |
Dehumidification Capacity | 300-5000 m³/h |
Achievable Dew Point | -70°C to -40°C |
Operating Temperature | 5°C to 35°C |
Power Supply | 380V/50Hz, 3 Phase |
Regeneration Temperature | 120°C to 180°C |
Fan Power | 1.5kW to 15kW |
Desiccant Material | Silica gel |
Customized parameters are available to match specific workshop requirements.
In lithium battery manufacturing, moisture-induced defects account for a significant portion of production rejects. By maintaining stable low dew point environments, this dehumidifier reduces the occurrence of electrode delamination, electrolyte degradation, and internal short circuits. This directly lowers the rate of non-conforming products and supports consistent battery performance across production batches.
Moisture causes corrosion of metal components in production machinery and precision instruments. A dry operating environment slows down this corrosion process, reducing the frequency of equipment maintenance and component replacement. This helps industrial facilities lower long-term operational costs associated with unplanned equipment downtime.
Lithium battery production processes have narrow tolerance ranges for ambient humidity. The dual-system design of this dehumidifier provides consistent dew point control even when external humidity levels fluctuate. This stability ensures that production steps proceed according to established protocols and meet industry manufacturing standards.
This dehumidifier is suitable for all stages of lithium battery production that require low humidity conditions, including electrode slurry preparation and coating, cell assembly and stacking, electrolyte injection and sealing, formation and grading processes, and finished battery storage and packaging. Each of these stages has specific humidity requirements, and the system can be adjusted to maintain the appropriate dew point for each production area.
Standard models can achieve a minimum dew point of -70°C under rated operating conditions. Custom configurations are available for applications requiring lower dew points.
Under normal operating conditions and with regular maintenance, the silica gel desiccant rotor has a service life of 8-10 years. Replacement intervals may vary based on operating environment and usage intensity.
Yes, the system can be integrated with existing heating, ventilation, and air conditioning systems to provide comprehensive environmental control for production facilities.
For detailed technical proposals and customized solutions tailored to your specific production needs, contact our technical team. We provide on-site assessments and system design support for commercial procurement projects. (Word count: 872)
